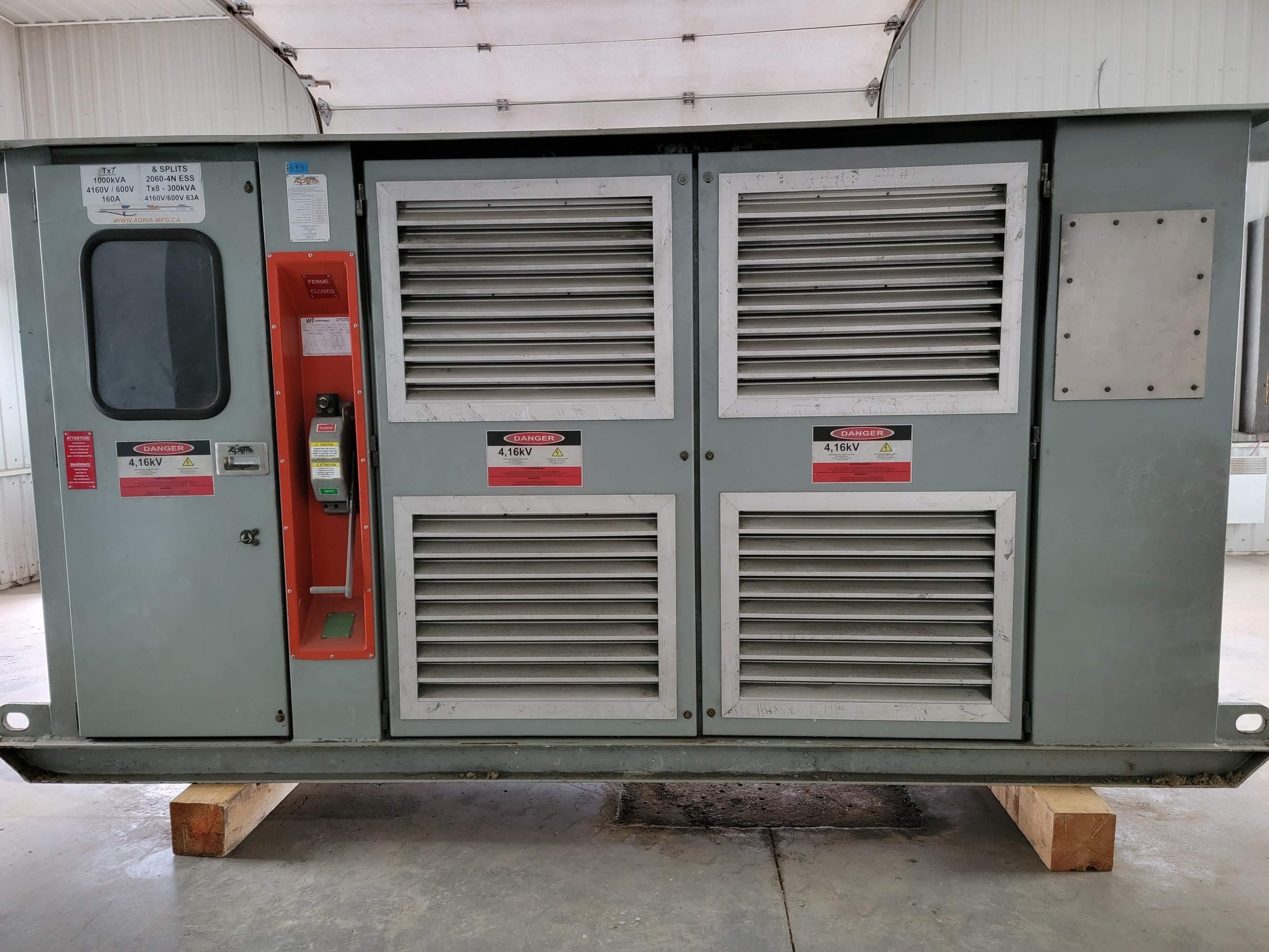

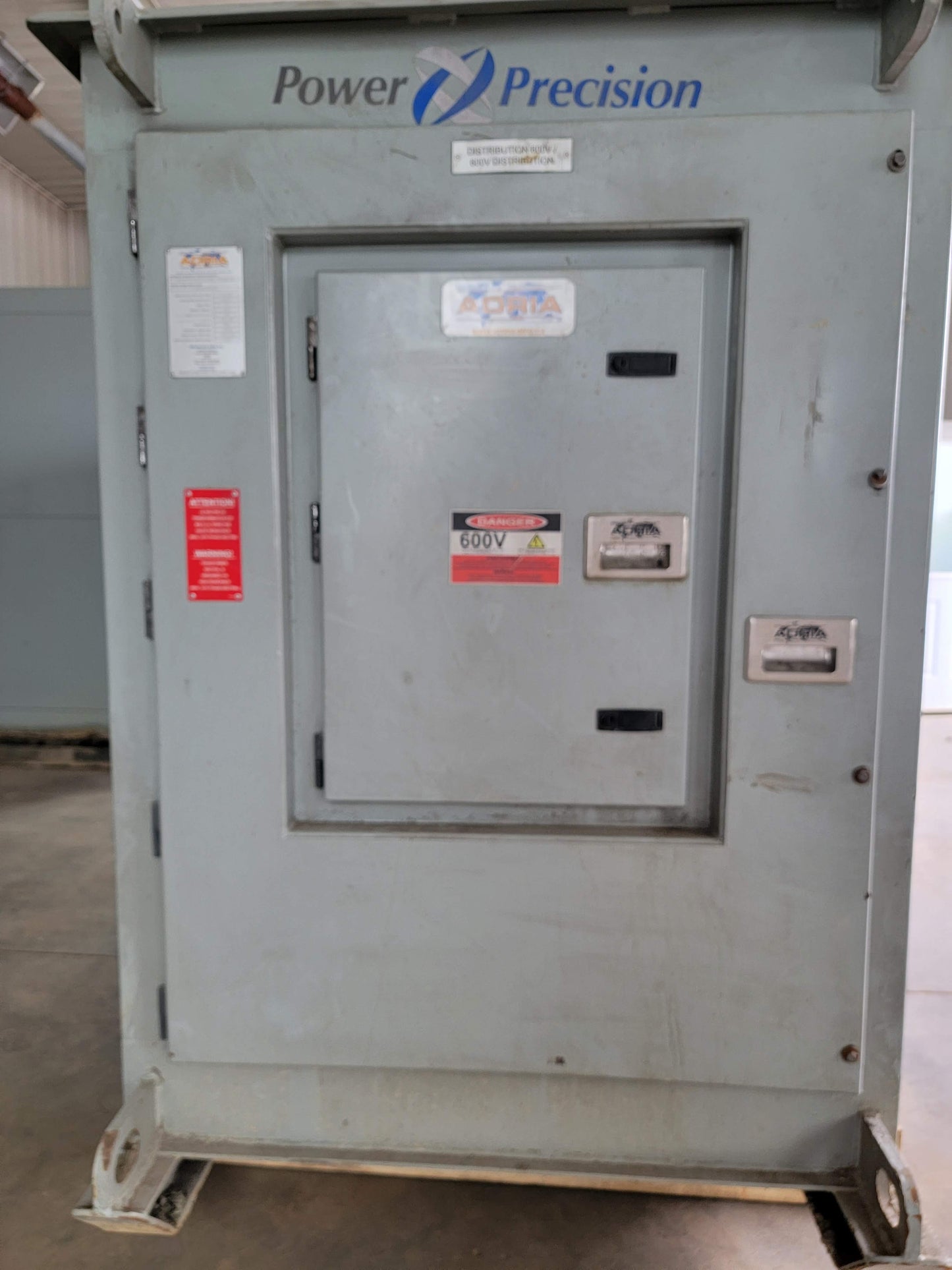

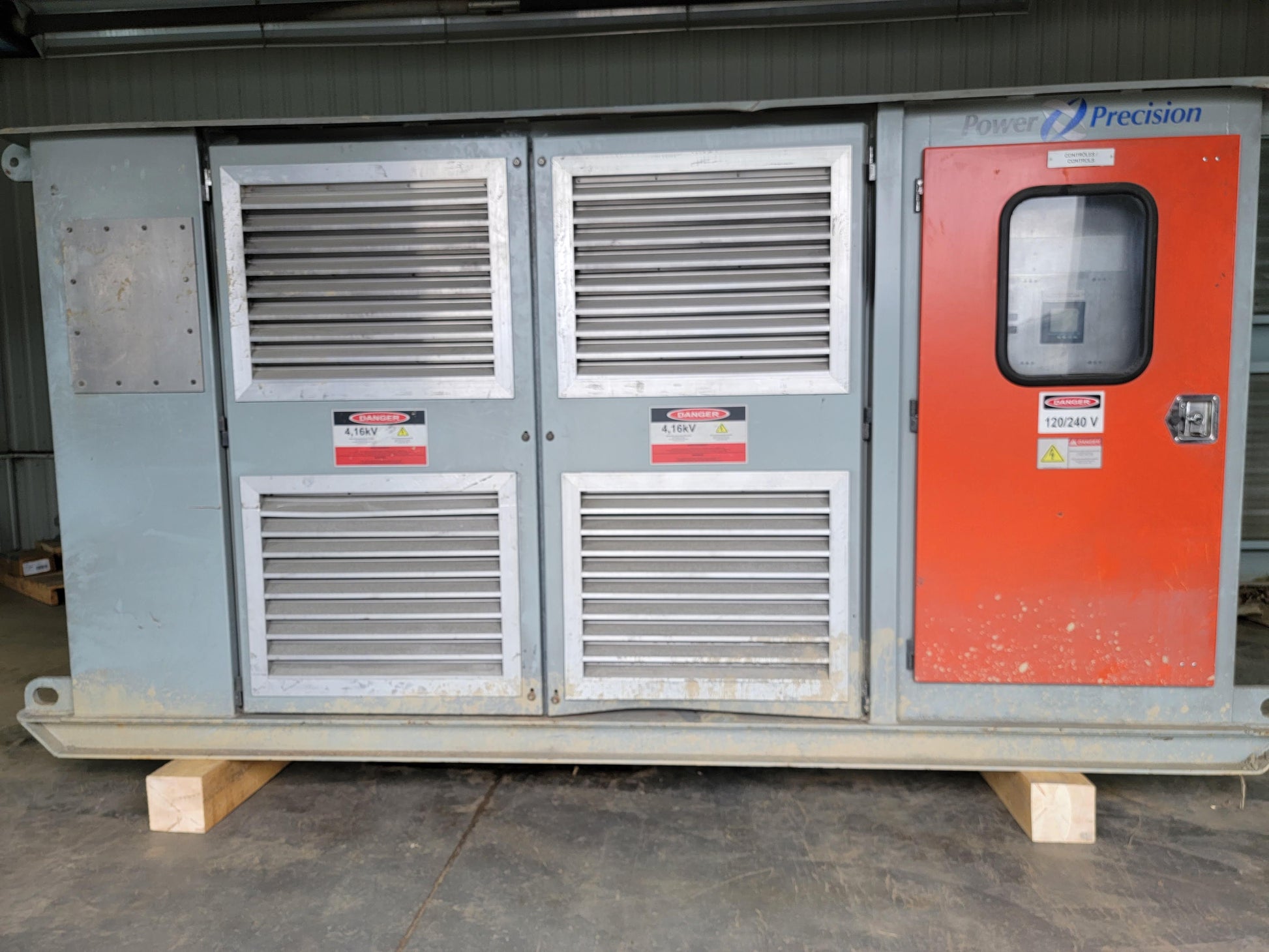

4160V - 600V, 1000KVA Portable Substation, CSA for underground mines or tunnels

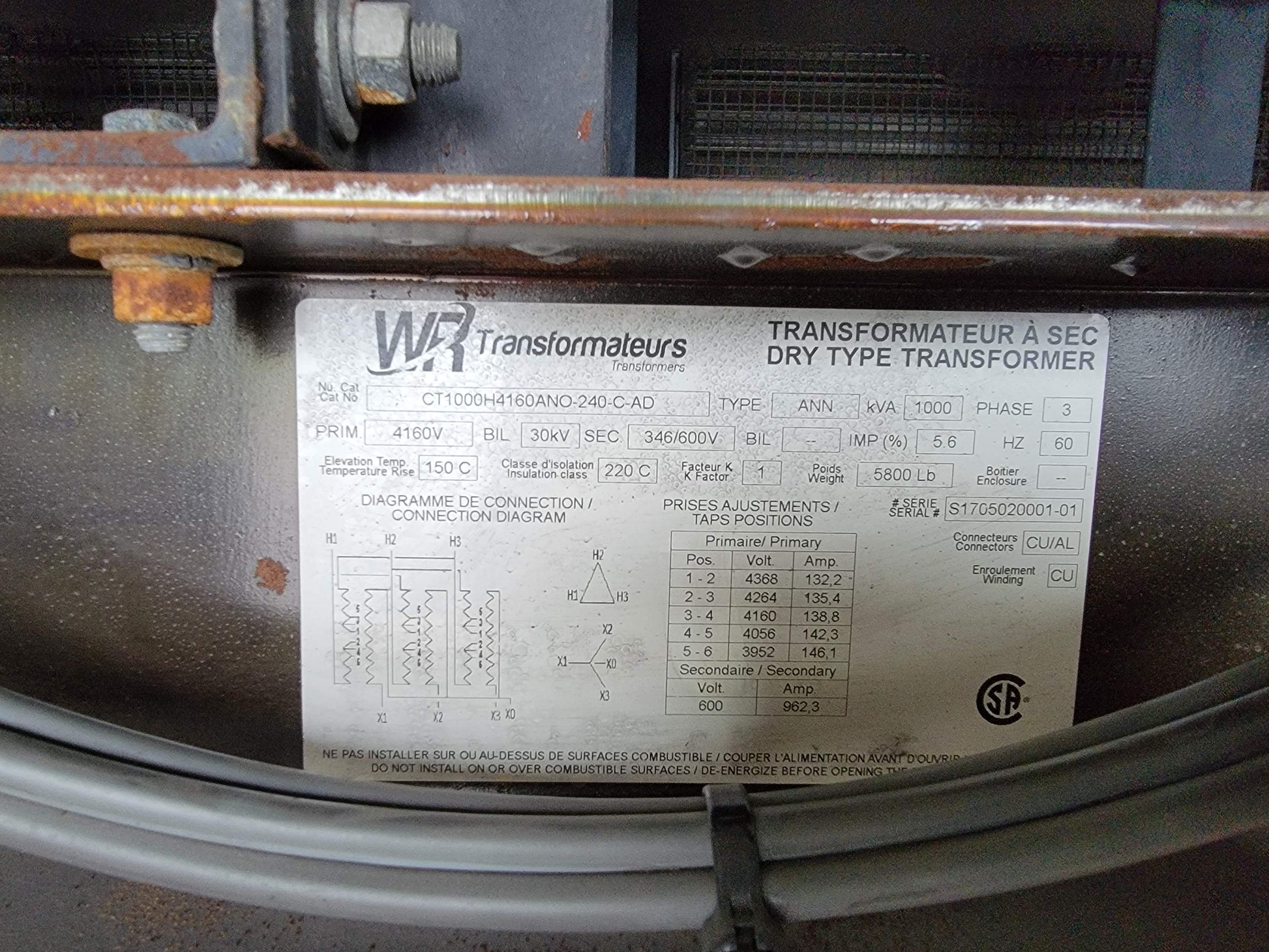

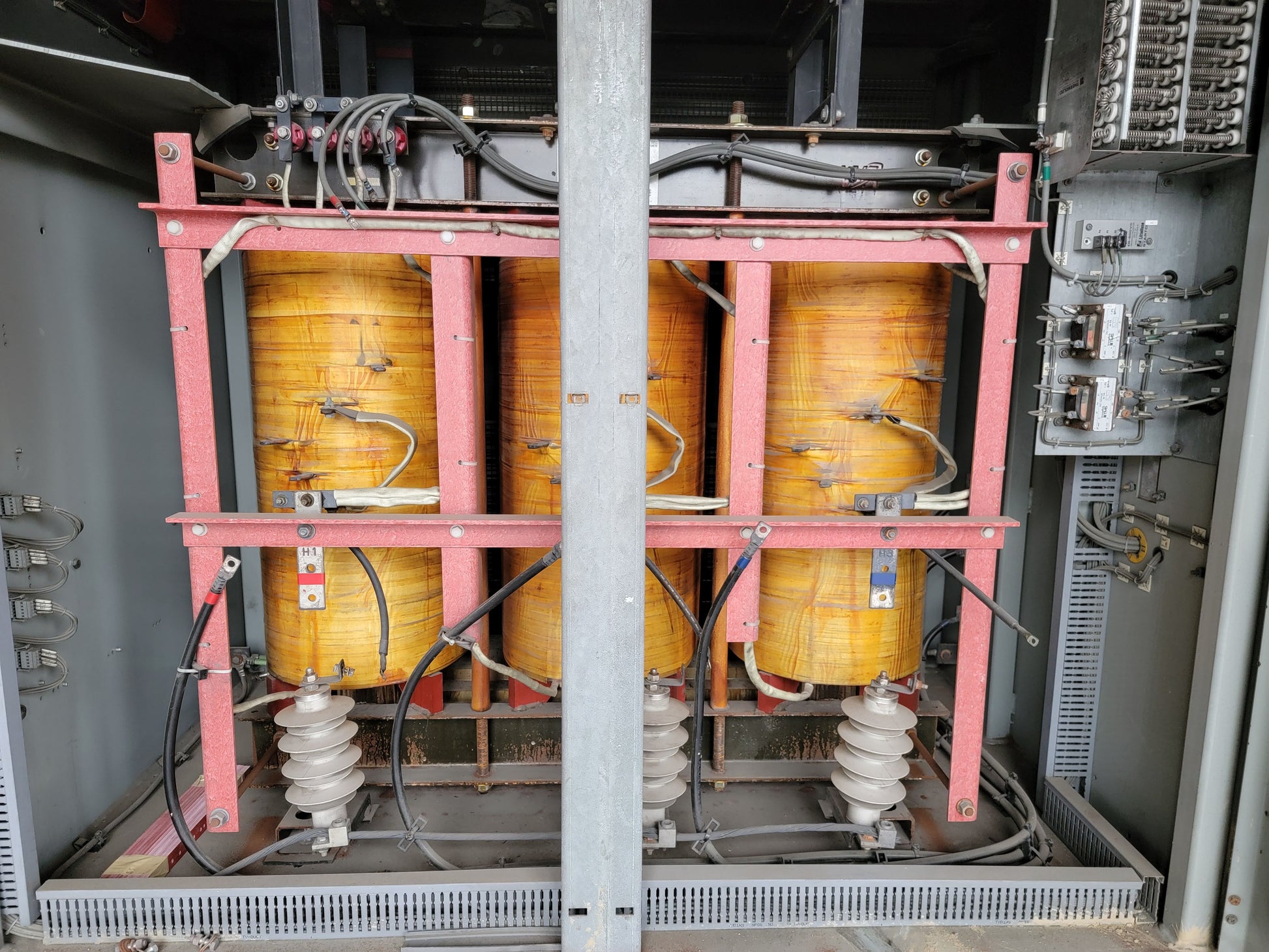

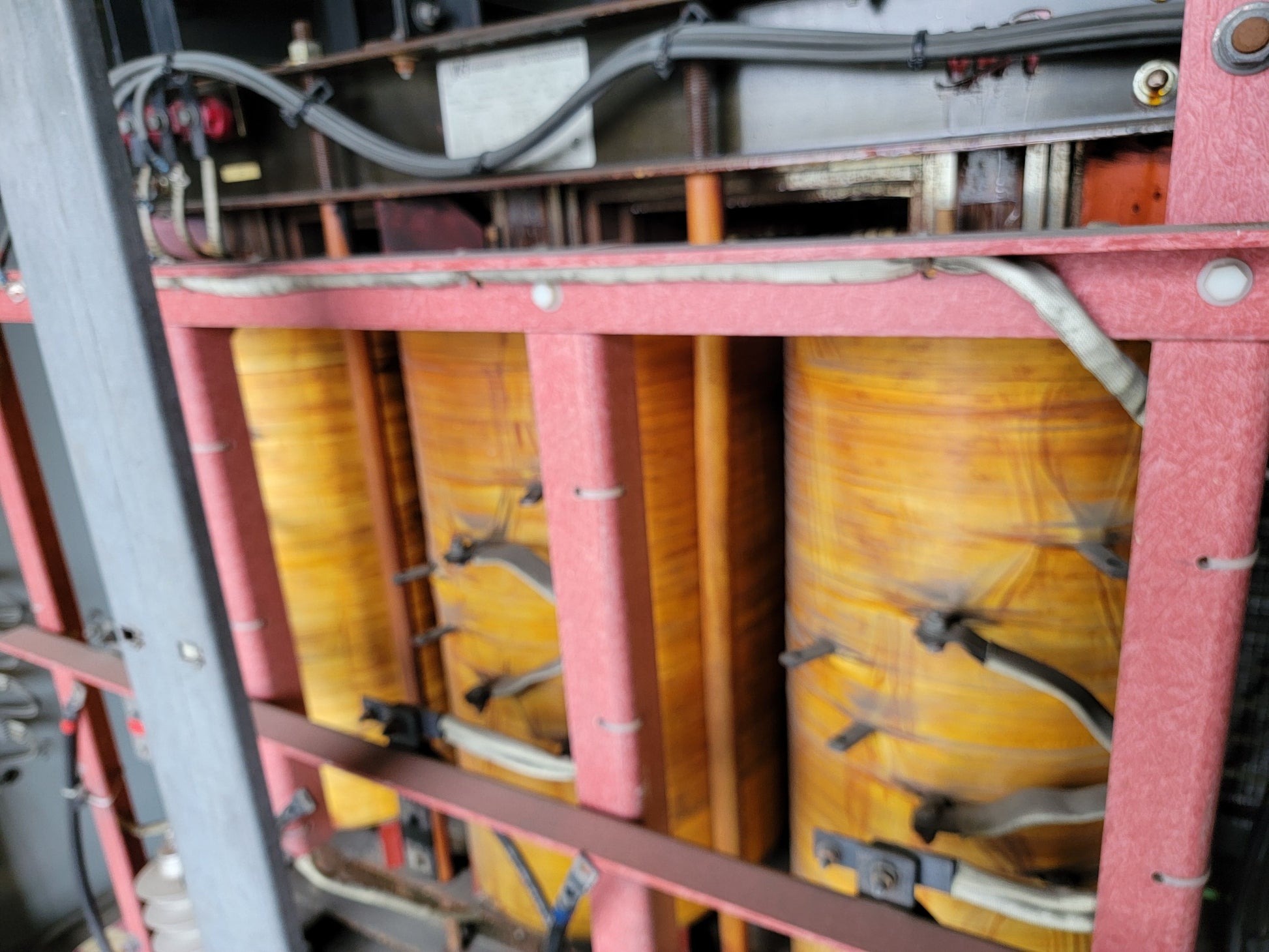

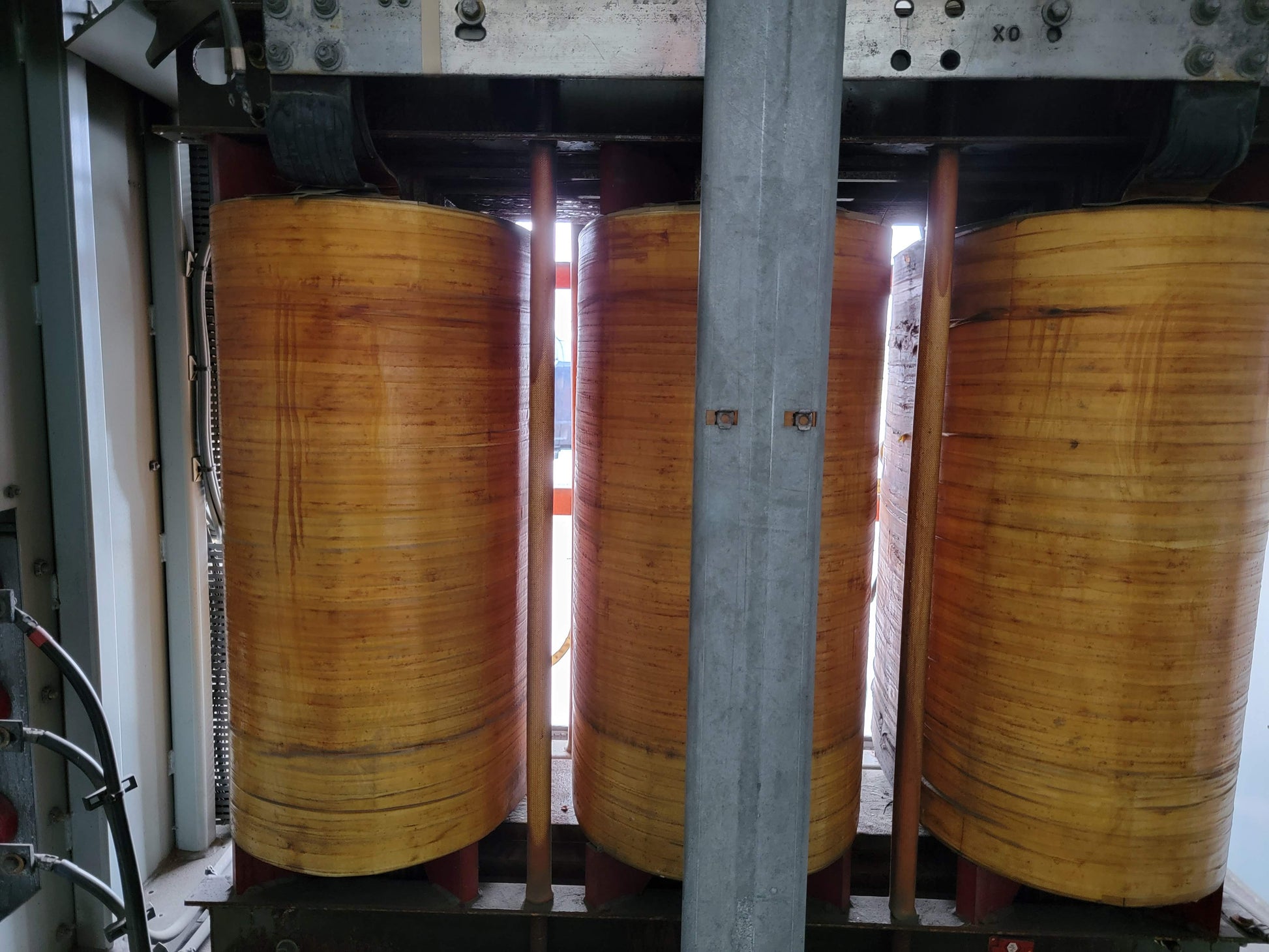

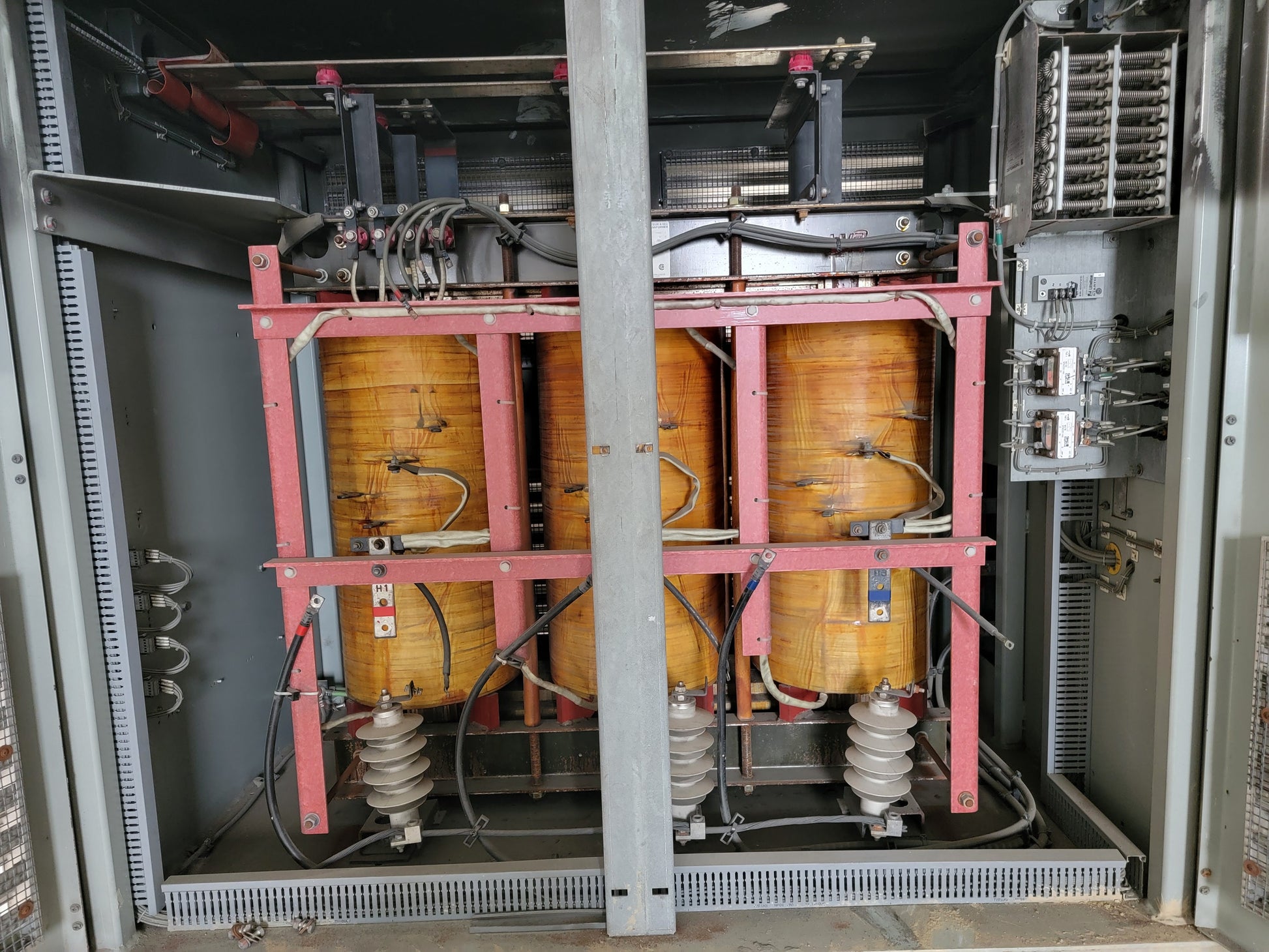

1000KVA, 4160V - 600V dry transformer 1 MVA, new coil 2025

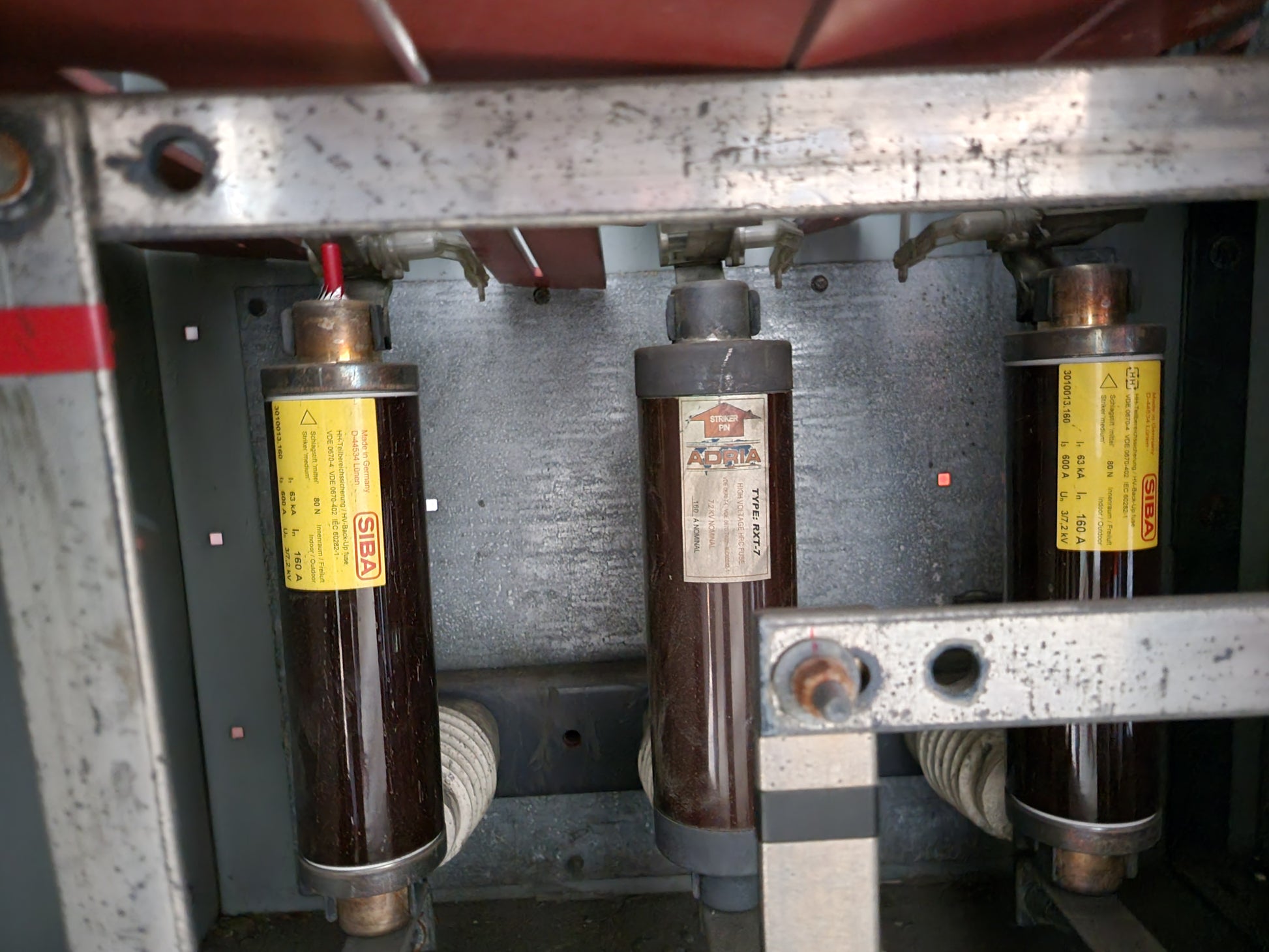

5KV Main Fused Disconnect Switch

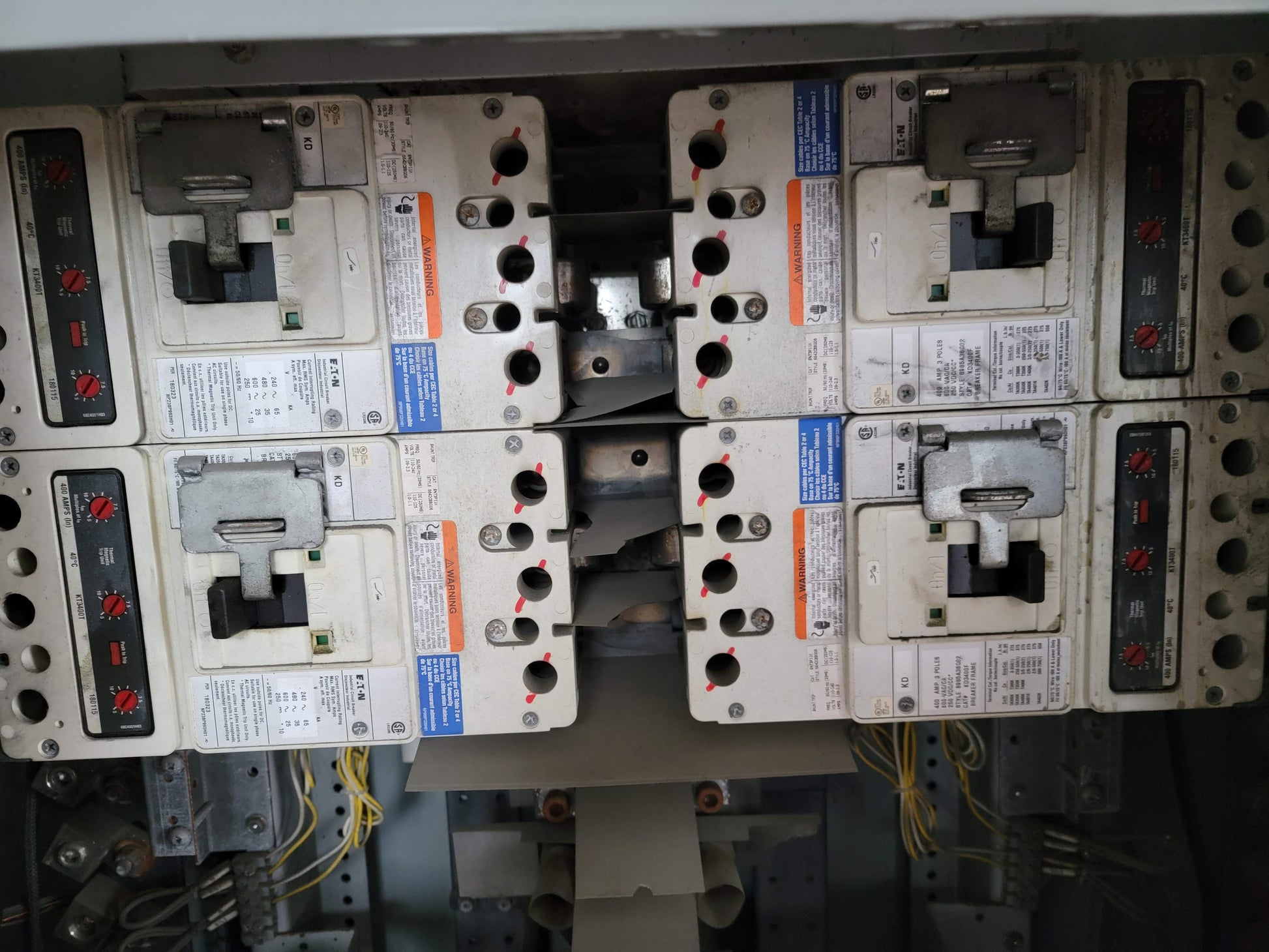

4 X 400 Amp Eaton K frame feeder breakers for 600V Output circuits

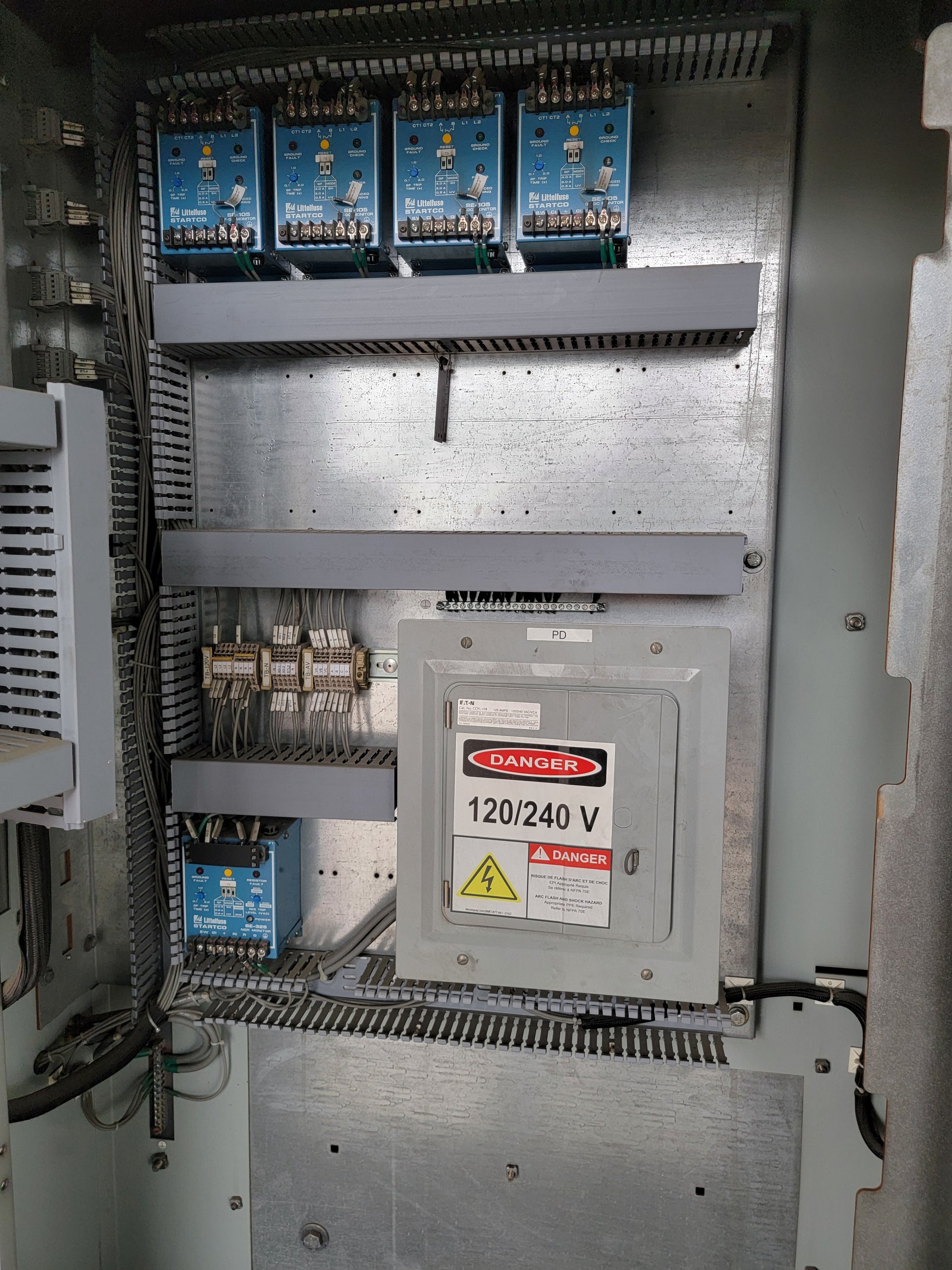

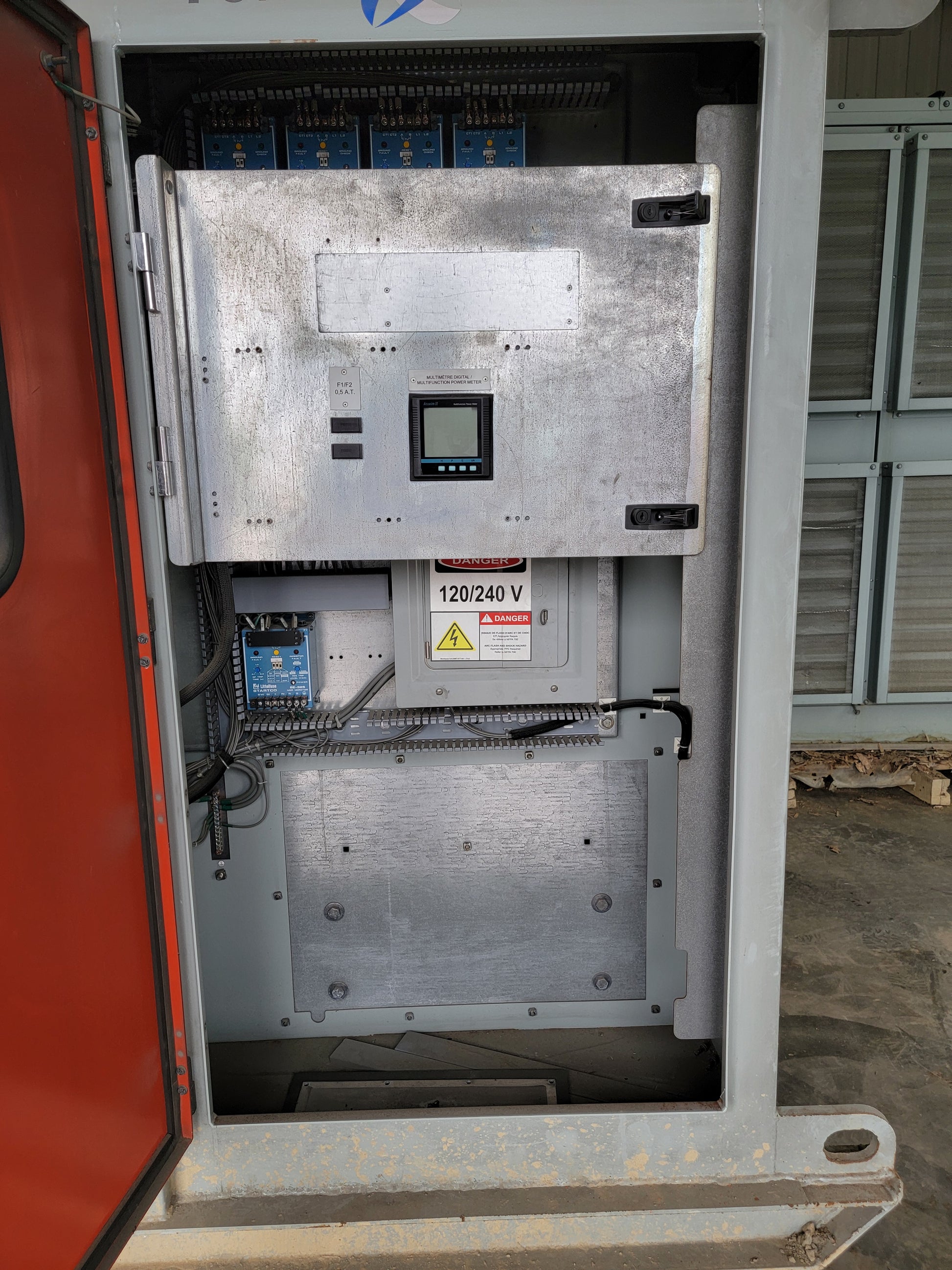

120/240V, 125 Amp output breaker panel

Neutral ground resistor on 600V output for mining safety code

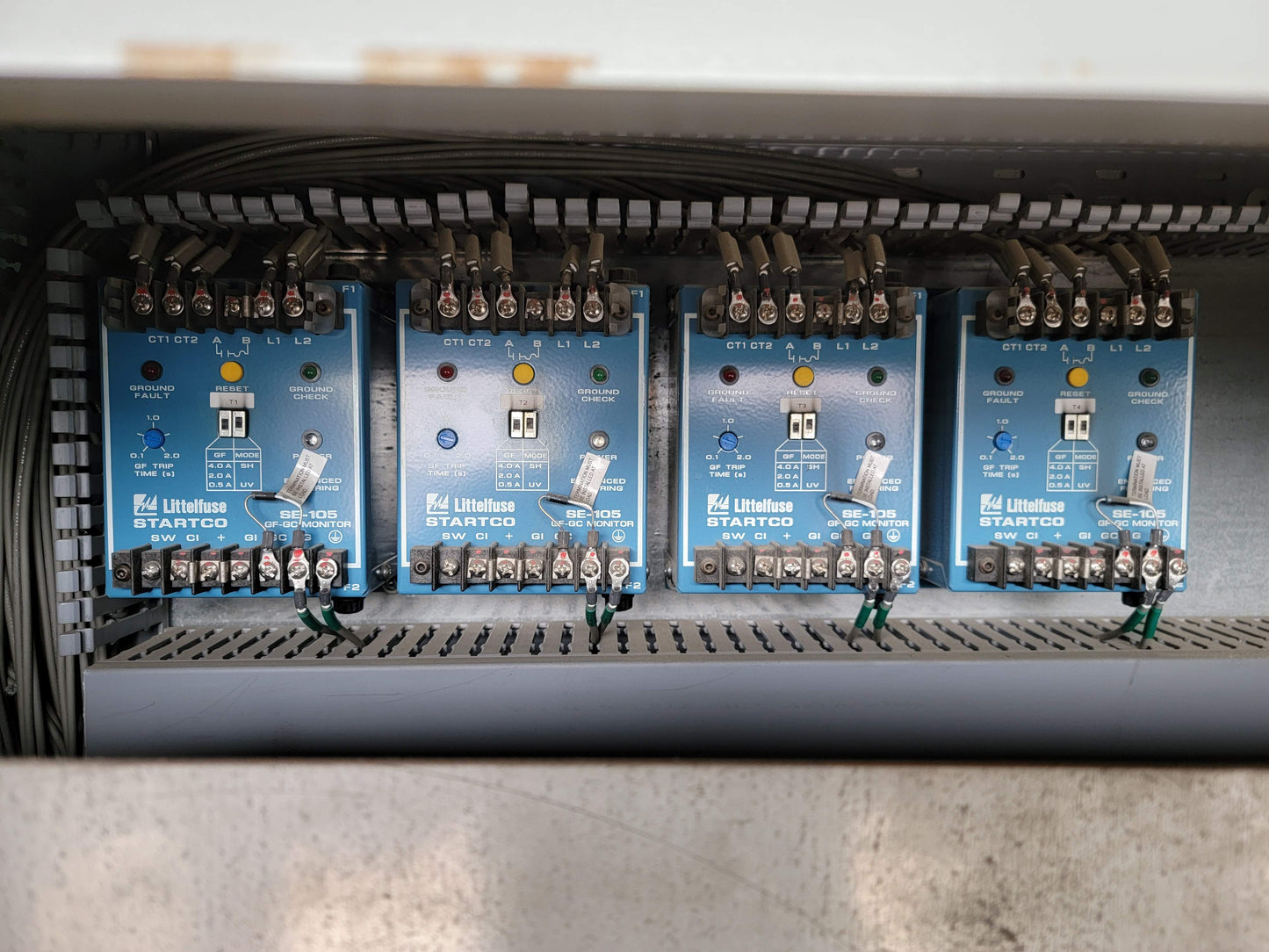

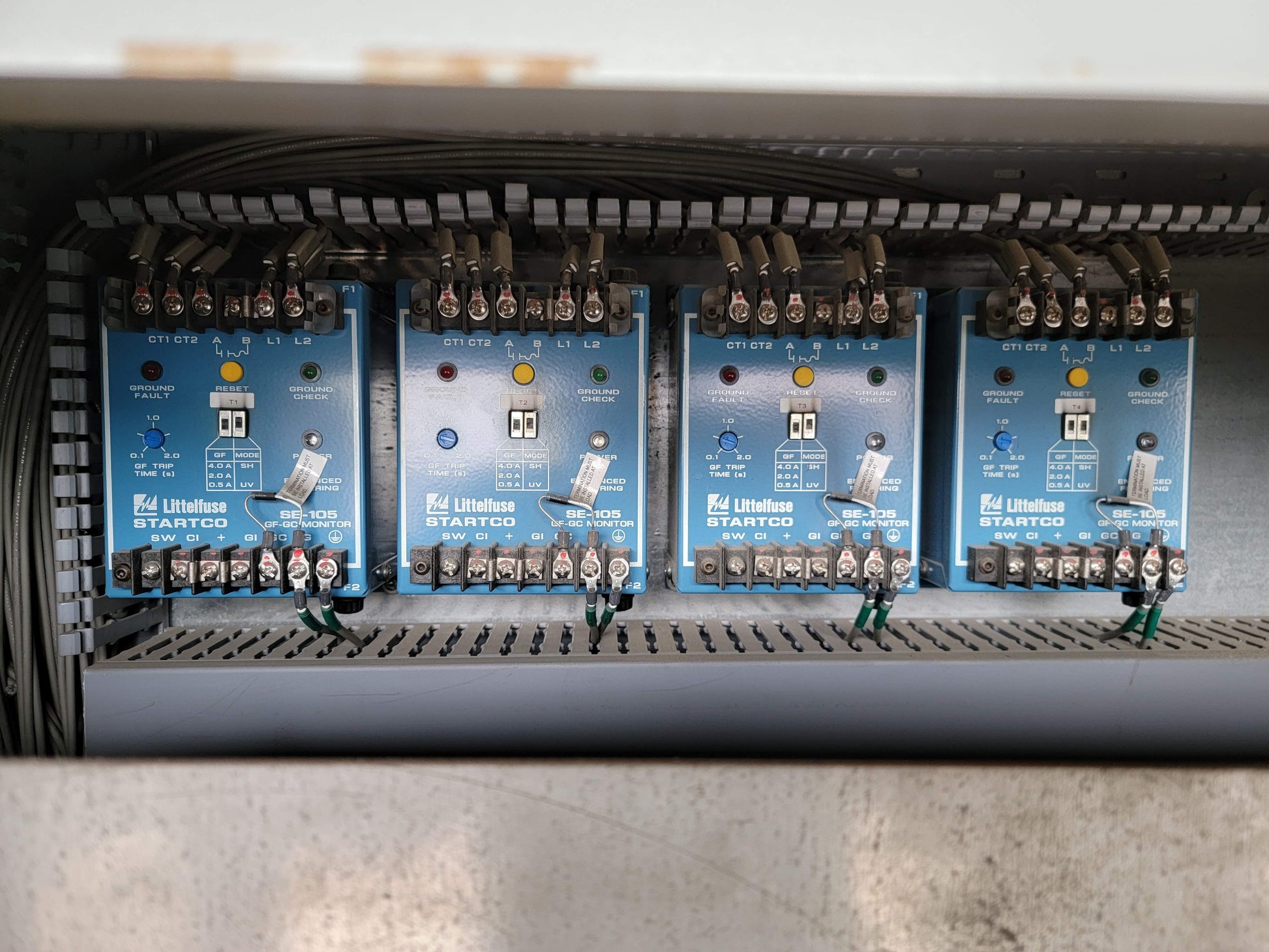

Startco ground fault and pilot protection on feeder circuits

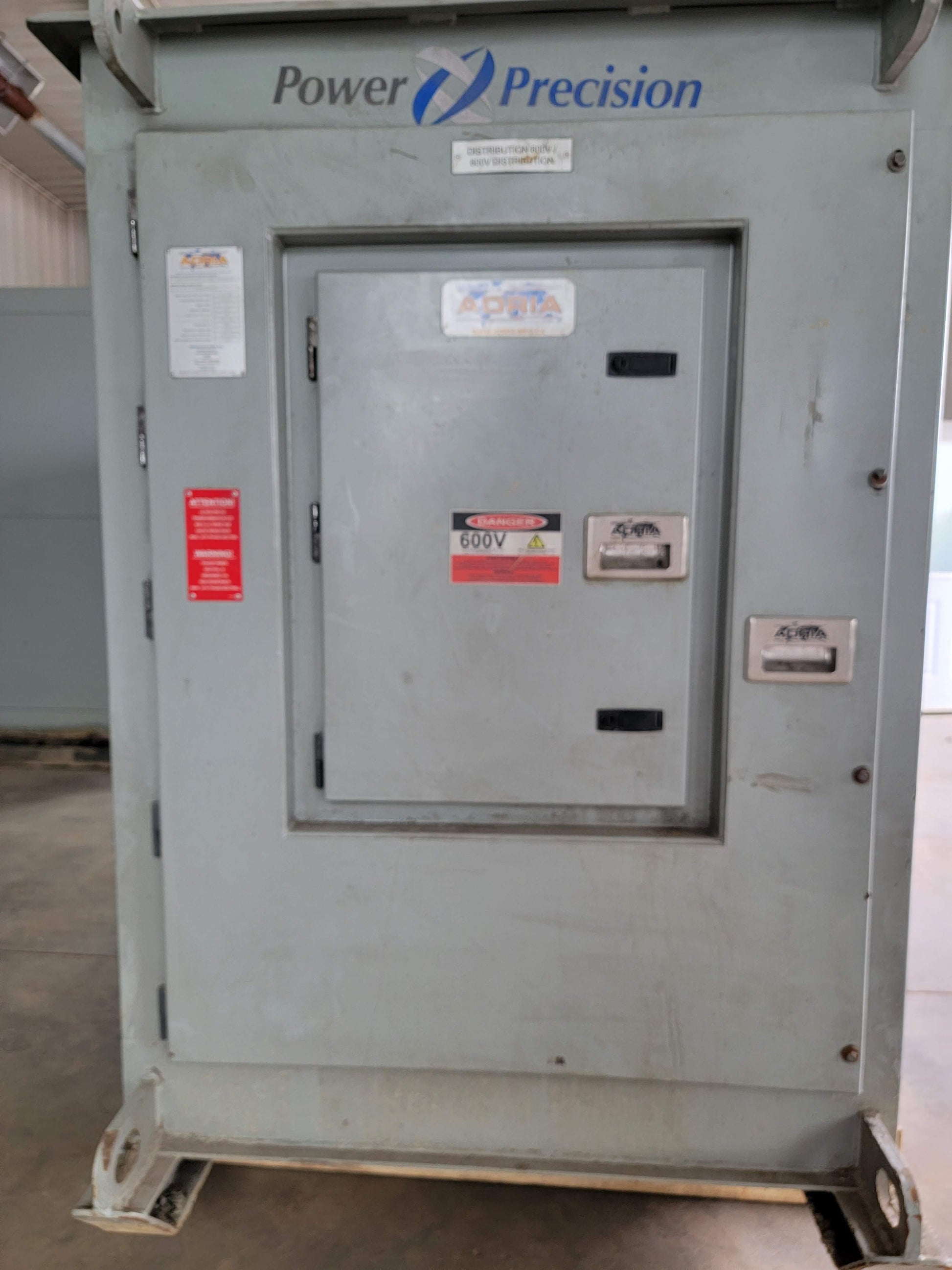

Rugged steel portable skid style enclosure, 140x44x70 inches, 356x102x178cm

Weight 8500 lbs, 3855 kg - contact us for shipping or pick-up.
